Description

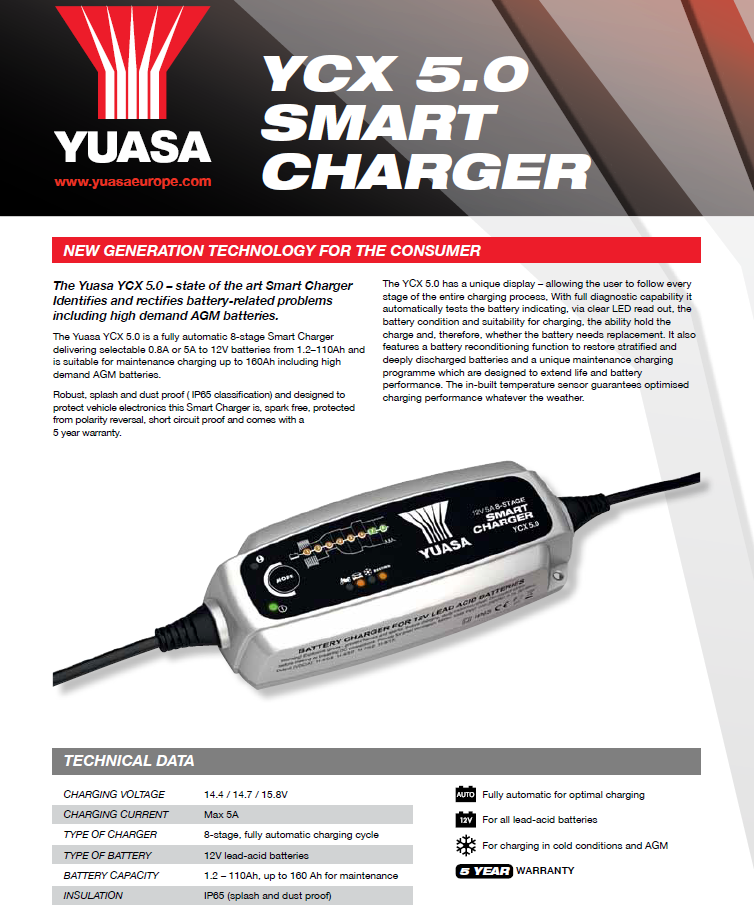

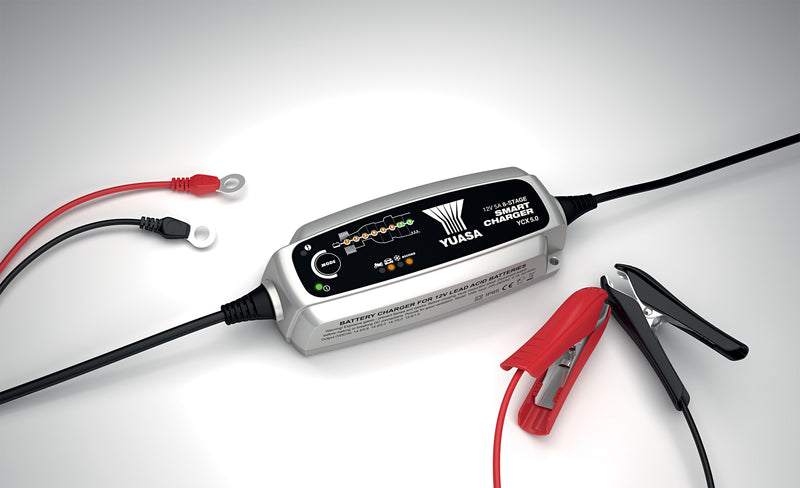

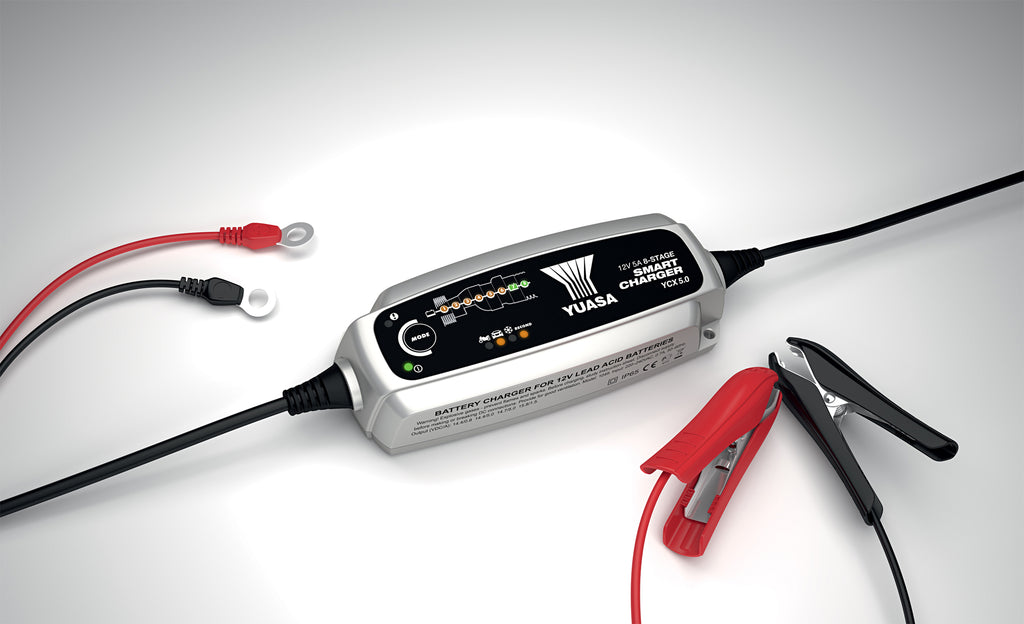

The Yuasa YX 5.0 – state of the art Smart Charger identifies and rectifies battery-related problems including high demand AGM batteries.
The Yuasa YCX 5.0 is a fully automatic 8-stage Smart Charger delivering selectable 0.8A or 5A to 12V batteries from 1.2–110Ah and is suitable for maintenance charging up to 160Ah including high demand AGM batteries.

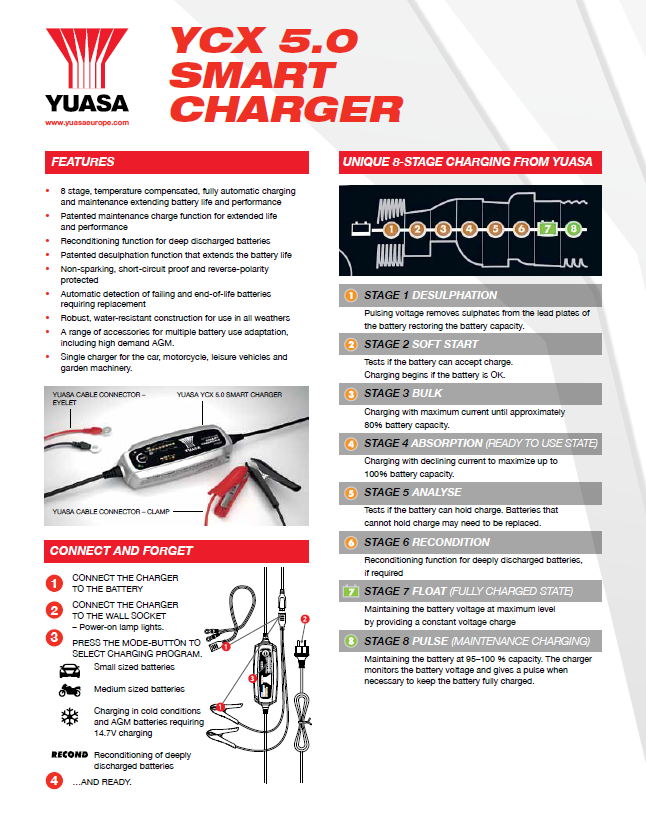

FEATURES
- Fully automatic for optimal charging
- For all lead-acid batteries
- For charging in cold conditions and AGM
- 8 stage, temperature compensated, fully automatic charging
- and maintenance extending battery life and performance
- Patented maintenance charge function for extended life
- and performance
- Reconditioning function for deep discharged batteries
- Patented desulphation function that extends the battery life
- Non-sparking, short-circuit proof and reverse-polarity
- protected
- Automatic detection of failing and end-of-life batteries
- requiring replacement
- Robust, water-resistant construction for use in all weathers
- A range of accessories for multiple battery use adaptation,
- including high demand AGM.
- Single charger for the car, motorcycle, leisure vehicles and
- garden machinery.
WATER PROOF
- Robust, splash and dust proof ( IP65 classification) and designed to
- protect vehicle electronics this Smart Charger is, spark free, protected
- from polarity reversal, short circuit proof and comes with a
- 5 year warranty.

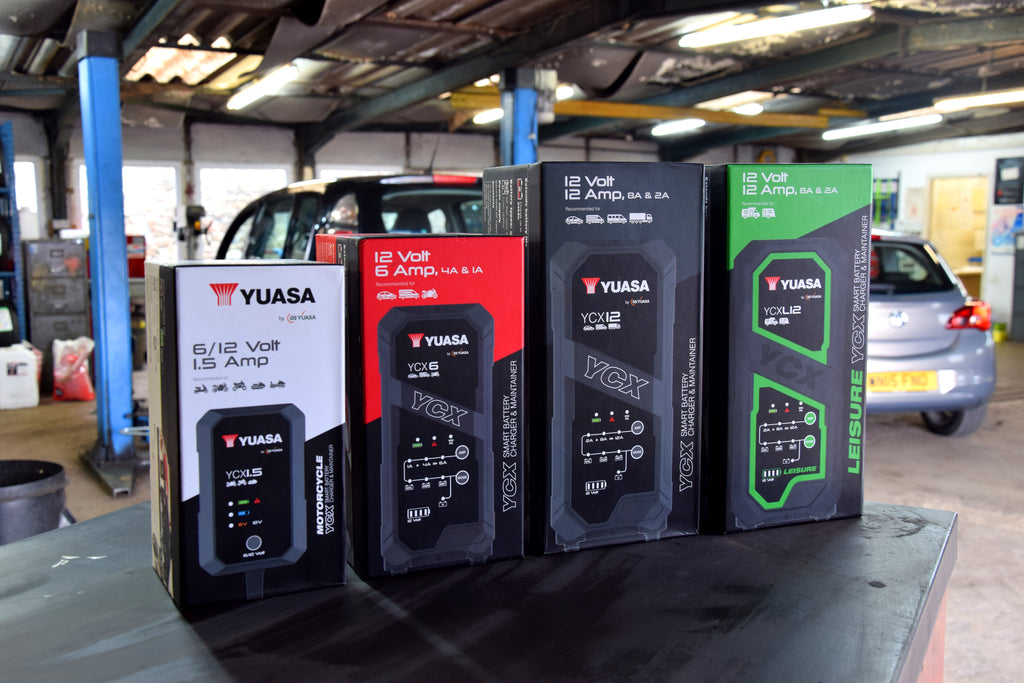

YUASA YCX SMART CHARGERS & ACCESSORIES
- Developed using GS Yuasa’s world leading battery manufacturing expertise to extend battery life, maintain performance and provide ultimate reliability.
- Automatic maintenance mode sustains optimum state of charge during battery storage.
- Detects and communicates charging faults caused by battery problems.
- Enhanced safety features, including short circuit, overcharging and reverse polarity protection for ultimate peace of mind.
- Durable splashproof (IP44) construction with robust integrated clamp and eyelet connectors.
- Self-activating maintenance mode sustains optimum state of charge during battery storage.
- The only vehicle battery charger you will ever need, with selectable power output levels to cover the widest range of battery capacities.
- Easy to use with simple navigation buttons and clear LED indicators.
INTELLIGENT DISPLAY
- The YCX 5.0 has a unique display – allowing the user to follow every
- stage of the entire charging process, With full diagnostic capability it
- automatically tests the battery indicating, via clear LED read out, the
- battery condition and suitability for charging, the ability hold the
- charge and, therefore, whether the battery needs replacement. It also
- features a battery reconditioning function to restore stratified and
- deeply discharged batteries and a unique maintenance charging
- programme which are designed to extend life and battery
- performance. The in-built temperature sensor guarantees optimised
- charging performance whatever the weather.
WARRANTY
- 5 Year Warranty
TECHNICAL DATA
| CHARGING VOLTAGE | 14.4 / 14.7 / 15.8V |
| CHARGING CURRENT | Max 5A |
| TYPE OF CHARGER | 8-stage, fully automatic charging cycle |
| TYPE OF BATTERY | 12V lead-acid batteries |
| BATTERY CAPACITY | 1.2 – 110Ah, up to 160 Ah for maintenance |
| INSULATION | IP65 (splash and dust proof) |
