Description

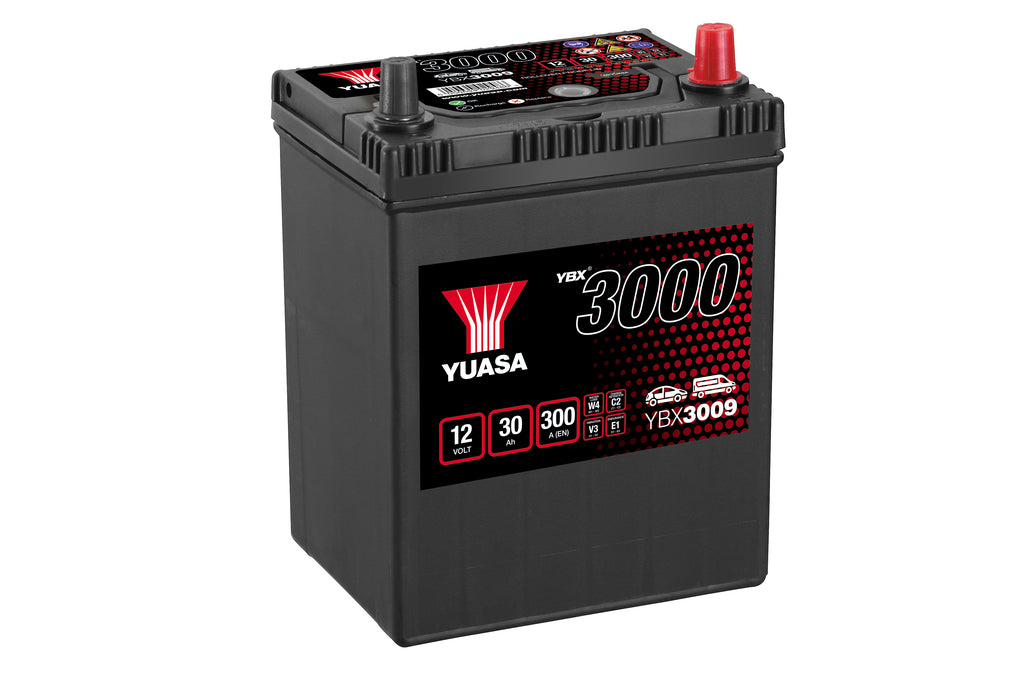

YBX3009 12V 30Ah 300A Yuasa SMF Battery. Japanese/Korean JIS Type
FEATURES
- Up to 30,000 engine starts
- For vehicles with standard power demands
- Extra plates for higher starting power
- Rollover proof lid for extra safety
- Range features 37 batteries
YUASA YBX® NEXT GENERATION AUTOMOTIVE BATTERIES
- Original equipment (OE) quality, performance & specification
- Fully maintenance free
- Supplied charged & ready to fit
- Designed with enhanced safety features including integrated flame arrestor & carrying handles

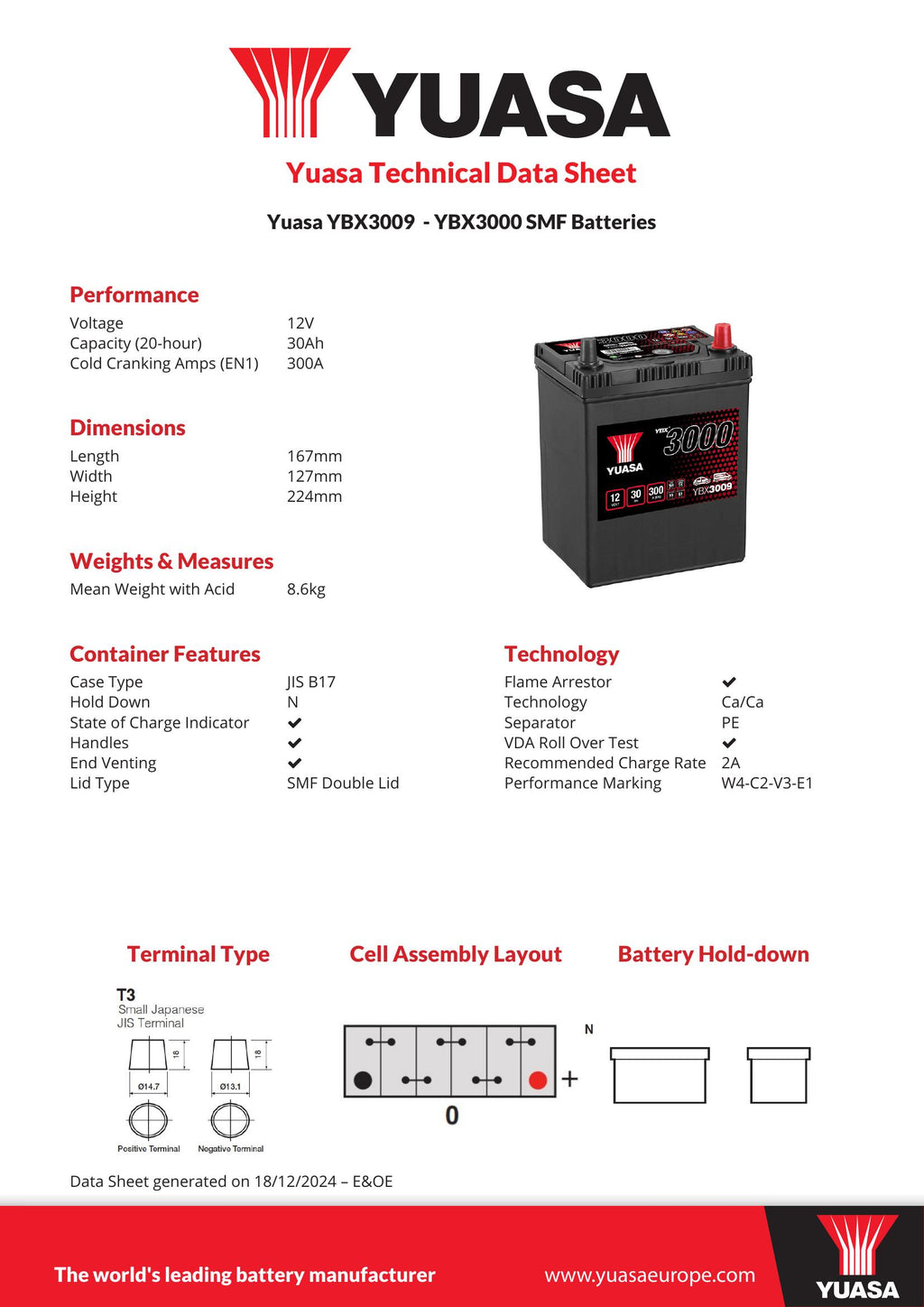

TECHNICAL DATA
| Case Type | JIS B17 |
| Voltage | 12V |
| Capacity at 20-hour Rate (Ah) | 30 |
| Cold Cranking Performance (Amps) EN1 | 300 |
| Mean Weight with Acid (kg) | 8.6 |
| Cell Layout | 0 |
| Terminal | T3 |
| Recommended Charge Rate (Amps) | 2 |
| Handles | Yes |
| End-Venting | Yes |
| State of Charge Indicator | Yes |
| Water Loss | W4 |
| Charge Retention | C2 |
| Vibration | V3 |
| Endurance | E1 |
| Terminal Type | T3 |
| Length (mm) | 167 |
| Width (mm) | 127 |
| Height (mm) | 224 |
| NCC Class | N/A |
| Feature Range | YBX3000 SMF Batteries |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Brand
- Yuasa
- Part type
- Battery
- Manufacturer Part Number
- YBX5116
- Original equipment
- No
- Universal part
- No
- Amp Hour
- 90 Ah
- Battery Capacity
- 90 A
- Cold Cranking Amperage
- 800 A
- Cranking Amperage
- 800 A
- Filled Weight
- 20.7 kg
- Height
- 190 mm
- Length
- 315 MM
- Sales Restriction
- Exclude Germany
- Terminal Type
- T1
- Voltage
- 12 V
- Weight
- 20 kg
- Width
- 175 mm
| Position | Make | Model | Year | Mfr Body Code | Engine Designation | Engine Base | Cylinder Head Type | Aspiration | Fuel Type |
|---|---|---|---|---|---|---|---|---|---|
| 1 only | Chevrolet | Captiva | Mar 2007 - Jan 2011 | -- | Z20S, Z 20 DMH, LLW, Z 20 S1 (LLW) | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 1 only | Chevrolet | Captiva | Oct 2006 - 2009 | -- | Z20S, LLW | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 1 only | Chevrolet | Captiva | Oct 2006 - 2020 | C100, C140 | Z20S, Z 20 DMH, LLW | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 1 only | Chevrolet | Epica | 2007 - 2020 | -- | Z20S, LLW | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 1 only | Opel | Antara | Jul 2006 - 2011 | L07 | Z20S, Z 20 DMH | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 10 only | Vauxhall | Antara | Aug 2006 - Apr 2015 | L07 | Z 20 DM | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
| 10 only | Vauxhall | Antara | Aug 2006 - Apr 2015 | L07 | Z 20 DMH | 2.0L l4 | SOHC | Turbo/Intercooled | Diesel |
