Description

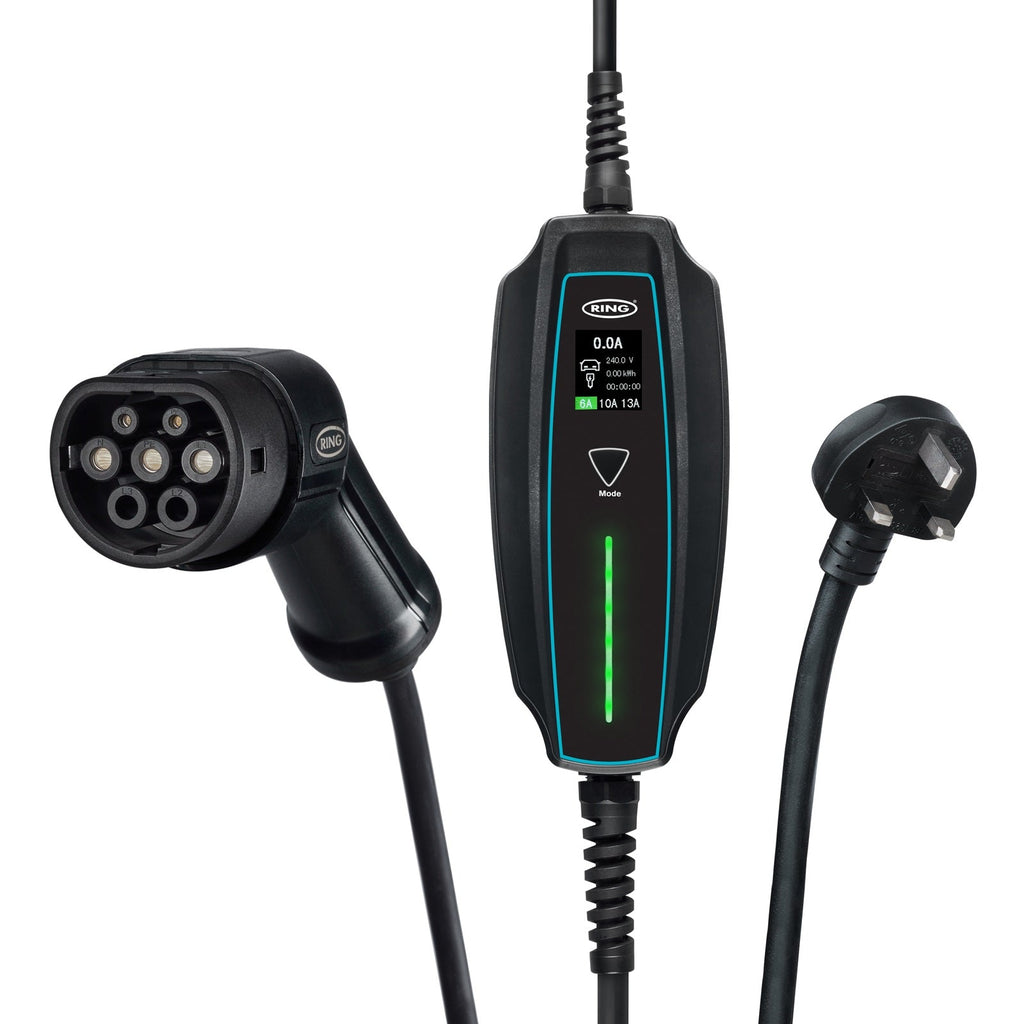

Ring's RPC20A05 is a charging cable designed for use at home or wherever you have access to a 3pin plug. Perfect if you do not have a access to a Type 2 charging station.

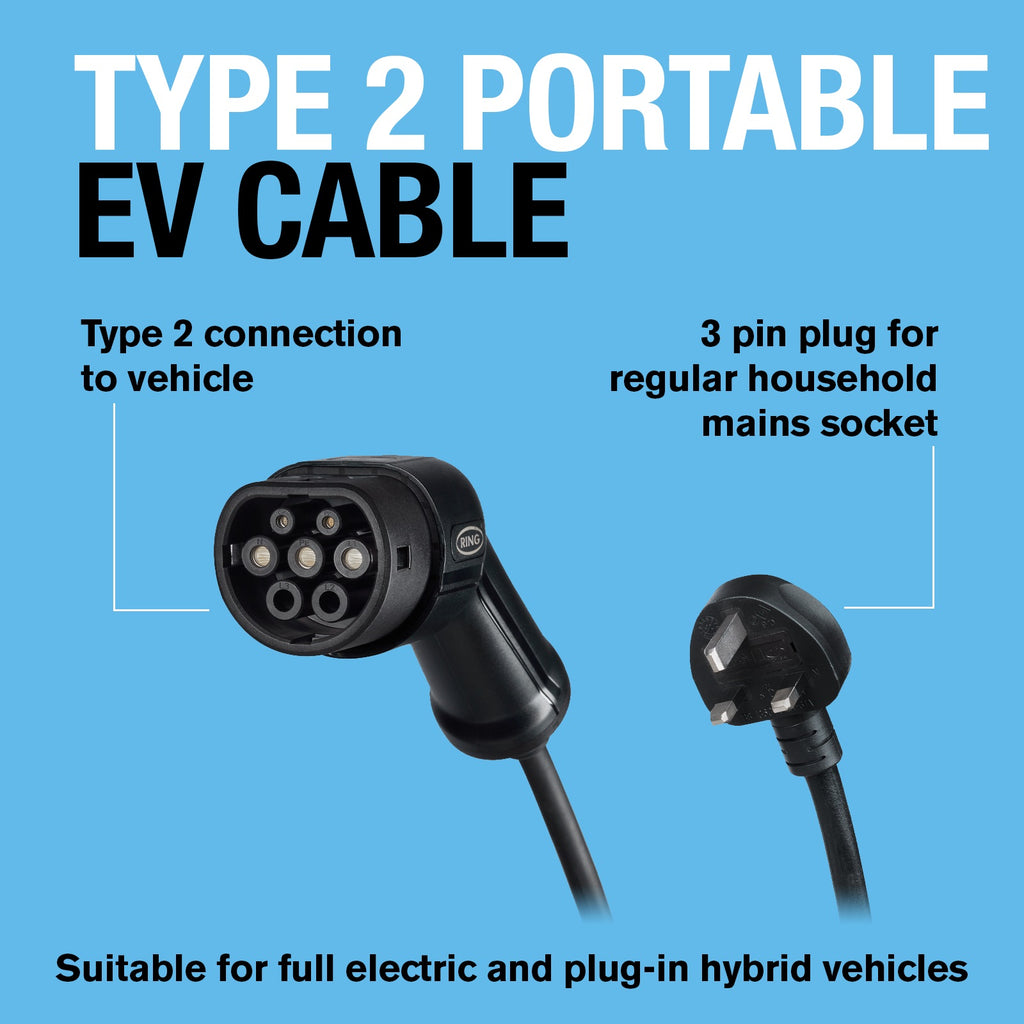

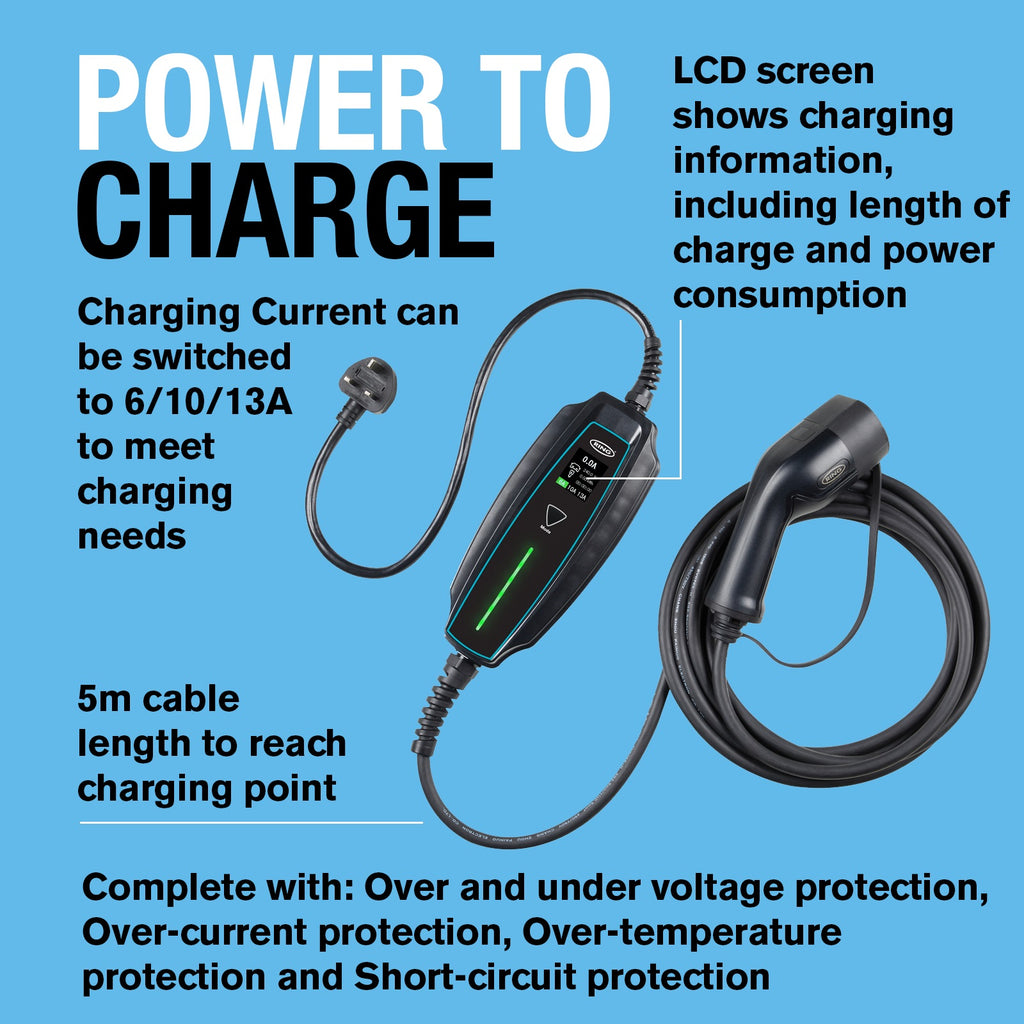

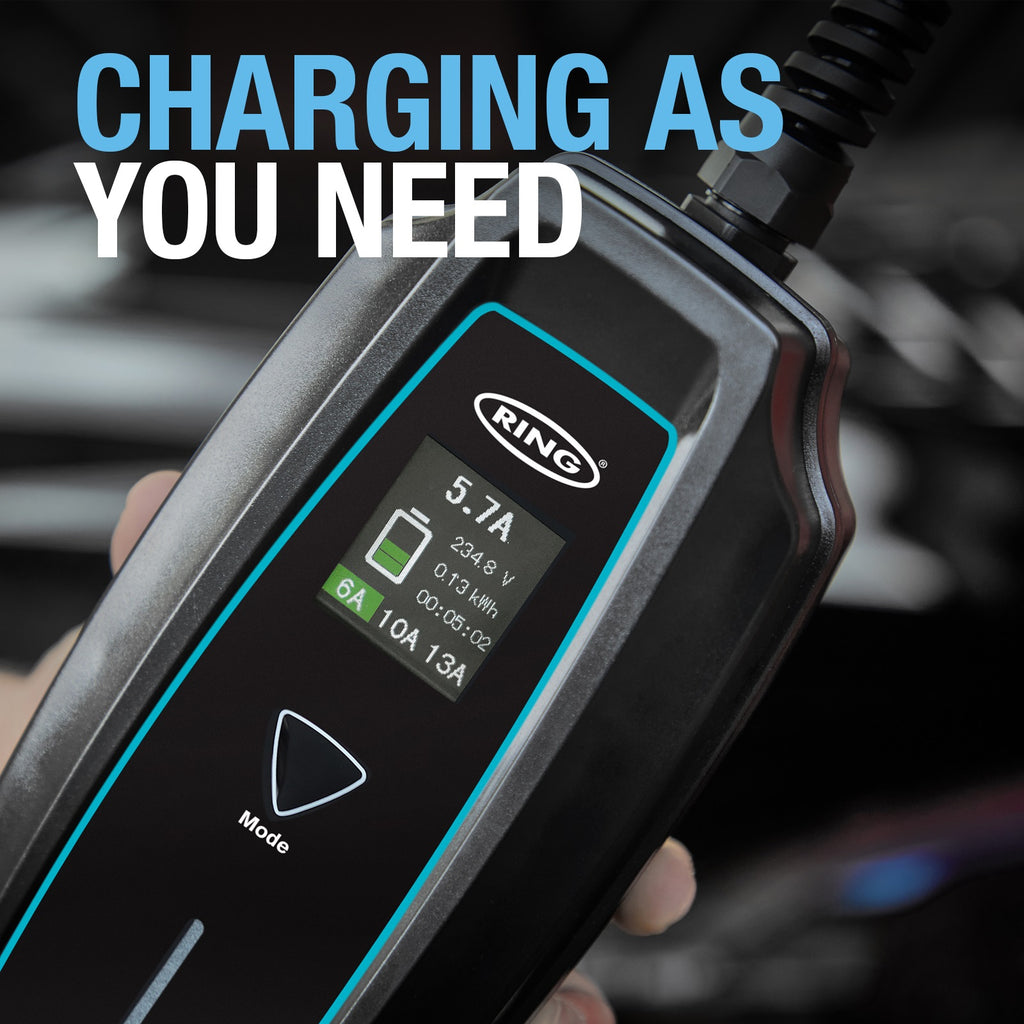

This model comes with a 3pin plug at one end for connecting to the mains power supply and a Type 2 connection for EVs with Type 2 charge points. Charging current can be switched between 6/10/13A to suit the vehicle and charge times required. LCD Screen shows charging information, including length of charge and power consumption
FEATURES
- Suitable for fully electric and plug in hybrid vehicles that have a Type 2 connection
- Variable charge rate of 6/10/13A suppling a maintenance charge for long term over night connection

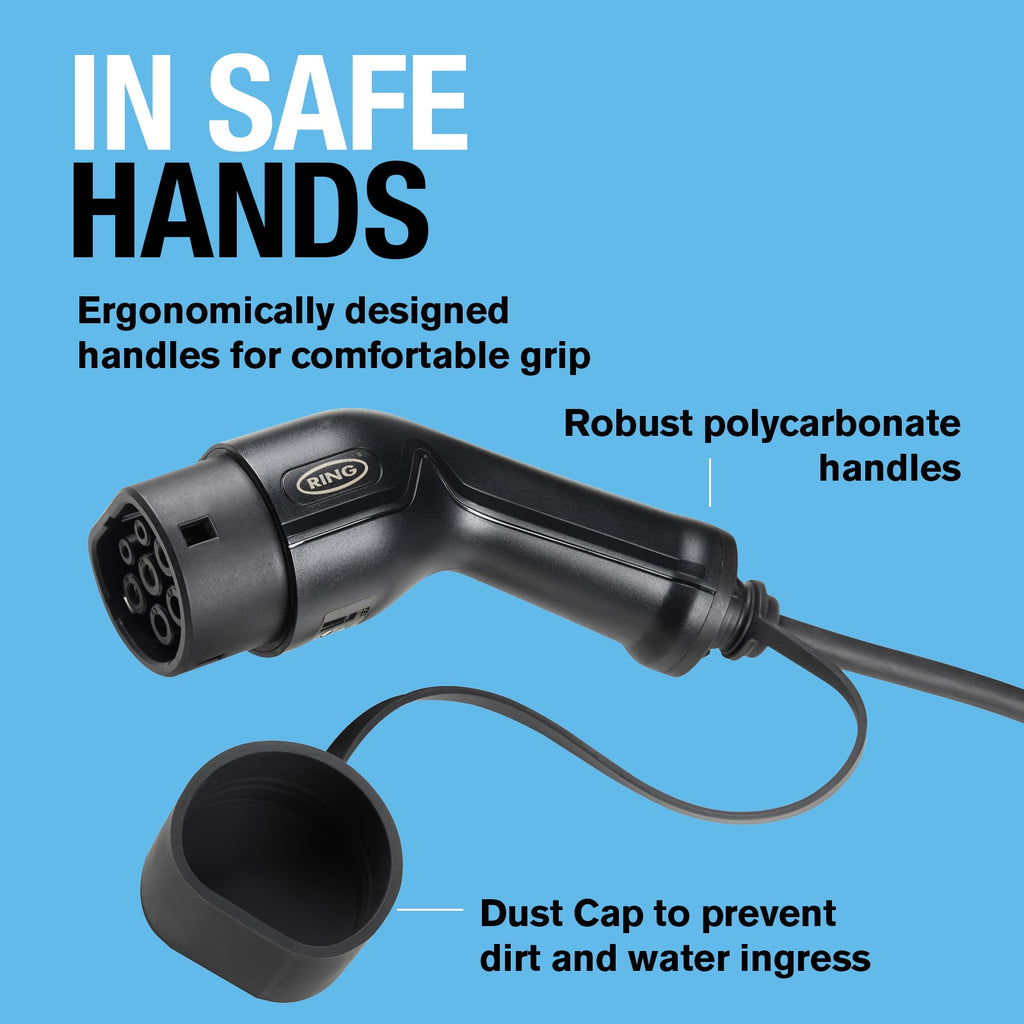

- Dust caps to protect against water and dirt ingress. Rated to IP65
- Impact resistance rated to highest level IK10 allowing the cable to withstand high impacts levels
- 5m cable length to reach the vehicle charge point wherever it may be on the vehicle

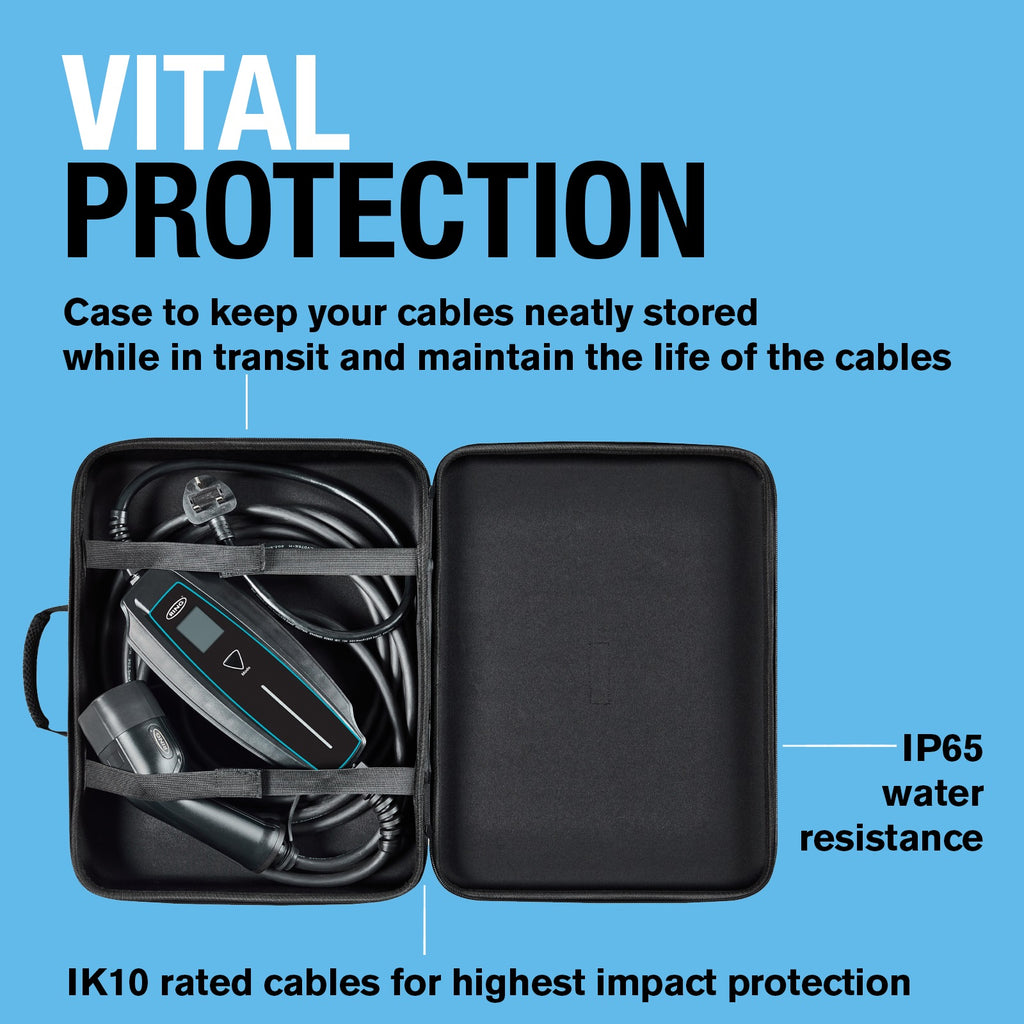

- Complete with storage case to keep the cables tidy and secure in the boot of the vehicle
- Safety features - over-voltage, current, over-temperature, leakage and short circuit protection
- Hard wearing heavy duty storage case - Store your cables safely and securely
- 5m overall length
CHARGE TIMES
- 13A charge times 3kWh
- 30kWh Battery - 10 hours
- 60kWh Battery - 20 hours.
- 90kWh Battery - 30 hours
- 10A charge times 2.3kWh
- 30kWh Battery - 13 hours
- 60kWh Battery - 26 hours
- 90kWh Battery - 39 hours.
TECHNICAL DATA:
| Product dimensions (mm) HxWxD | 320 x 437 x 91 |
| Weight (kg) | 2.562 |
| Voltage | 230V |
| Wattage | 3KW |
| AmpsOutput | 13A |
